Livestock projects

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

General project information:
Livestock is located in Kermanshah province with an area of ​​12 hectares.
The total land area is 700 hectares, of which 400 hectares are on the west side of livestock for development plan.
The existing land is currently used for agriculture.

Optimization of existing livestock and future design vision:
Existing animal husbandry needs to be optimized in future design and increase efficiency.
- The number of milky livestock has been considered in the development plan of 6 to 7 thousand heads, for which 400 hectares of land has been considered next to the existing livestock.
- In the development plan of sheep breeding is also considered that there are currently 1500 heads.
Also, there is no need for a feed factory in the development plan.


Livestock making




Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

Features of accumulation pools of liquid compost of Zarin Heev dairy farm Company
Agricultural lands engaged so far: Over 9 hectares


Livestock making



Livestock making

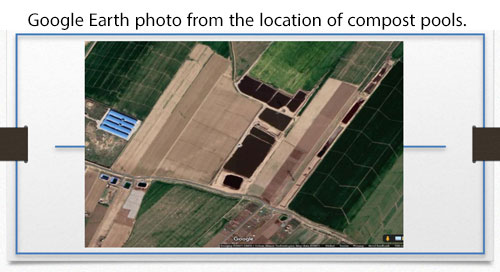

Environmental problems caused by compost earthen pools:
At present, liquid compost backwater exited from Zarin Heev dairy farm is conducted towards fields down the company using some canals and cumulated in totally earthen pools. It takes a long time after evaporation of its liquids (about 4 years) to change into dry compost and become usable. This present system has made plenty of technical, financial and environmental problems:
1- In these pools, cumulated liquid composts whose solids always cover water's surface, it demands a long time for the water existed down these composts to evaporate so that their solids could be separated. Consequently, this engages the fields for a long time and provides a lot of time for polluted waters to leak into down surfaces and underground waters and lead to their pollution.
2- With regard to technical system and the existing pools' being marshy, it is not possible for the workforce and the equipment to work and separate compost from water which it caused several compost pools to be made and most part of the farms to become polluted and unusable
3-From among other problems of these pools, it can be mentioned that when heavy seasonal raining, the pools' output rate of flow becomes uncontrollable that it makes downstream fields get polluted that it, in turn, results in various environmental problems and the contest of the owners of the said fields.
4-Furthermore, the lands from which they use as earthen pools of compost accumulation, cannot be cultivated in no way even many years after movement and depletion of compost.

Statement of the problem:
In recent decades, because of increasing population and changing classic dairy farms into modern and enormous ones, it is needed to take new measurements to manage compost so that they could keep the system  economically strong; and it can supply the current needs of world community. Nowadays, husbandries and especially dairy farms require to be managed effectively in terms of environmental, economical and energy-based subjects. From 1960s, extraction of liquid compost from husbandries has found many proponents, so the process of separating liquid –solid plays an important role in management of manures but knowing the limitations and the fields of their function are also essential.
The advantages of separating manures are the following: improvement of transportation conditions, decreasing danger of water and soil resource pollution, decreasing bothering factors such as stink, meeting health affairs and enjoying value added of products of solid and liquid composts.

Using the equipment separating compost from water, a way to save the time and not to need lots of earthen pools :
In most of the advanced countries, you can see these equipment for instance, in Ontario, Canada, a machine has been built that can enter the compost gathering pools and move solid compost, having several nuzzles; and gather them in one side. This machine has the capacity of moving 12000 gallons of liquid compost (around 45000 liters) per minute. It is an amphibian vehicle that has been designed for arousing lagoons. Having some suckers, it pumps the liquid part of composts and injects them into the lands. After it was made in 2014, demands for Lagoon Crawlers raised; and now, over 175000 machines are working in modern dairy farm.

Building Geo membrane pools; a solution to eliminate earthen pools:
In this respect, for collecting liquid compost, it is better to determine one pool instead of using a large number of pools and create proper substructures like using geo membrane pools on the pools' floors as they have capability of entering the equipment like logons. Cumulated liquid compost whose solids always cover water's surface, demanding a long time for the water existed down these composts to evaporate so that their solids could be separated by this equipment. In such a way, building  geo membrane pools that, in no way, do not let liquid compost penetrate into down surfaces of soil causes the liquids not to need a long time to evaporate and change into a dry and extractable compost. As a result, the environment, underground waters and agricultural parts are not damaged.




Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

Heev Feed Mill Factory
(Performed by Mandegar Sazeh Heev Company)

Factory information:
Land area: 5 hectares
Factory parts:
The main tower
Air silos
Drainage shelter
Manganese warehouse
Flickr Tower
Guard and office building

Main tower: metal structure with a height of 42 meters and an area of ​​500 square meters
Aerial silos: 8 4000 ton silos with an area of ​​1750 square meters
Drainage Shelter: Concrete structure with an area of ​​300 square meters
Mechanized warehouse: structure with dimensions of 1000 square meters
Guard and office building: structures with an area of ​​800 square meters




Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

Free stall Hall of Zarrin Heev Company
(Performed by Mandegar Sazeh Heev Company)

* Design and construction of the largest and most equipped hall free stall in the country with a capacity of 1000 cows
* Height of the floor to the crown of the shed: 13 meters
* Use only 4 columns with very small dimensions

Livestock making

Parts of Zarrin Heev Free Stall Hall
ceiling
It is covered with two layers of fiberglass insulation for proper air circulation.


Livestock making


* Drinking:
With granite and cold resistant, shock and keep the water cool in hot seasons and its extremely low price compared to the same product made of steel.


Livestock making

* Hall floor:
Creating a suitable bed with roughness compatible with the natural environment of livestock and very resistant with the help of carpet bricks


Livestock making


*Metal:
Made of ST37 steel with 52 meters opening and 180 meters hall length.

Livestock making

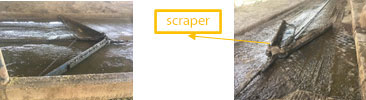

* Fertilizer collection system:
One of the most important goals in the management of industrial livestock manure is the optimal collection of waste with maximum efficiency in the shortest possible time. These scrapers are able to collect waste in the hallways of free stalls or even springs.

Livestock making

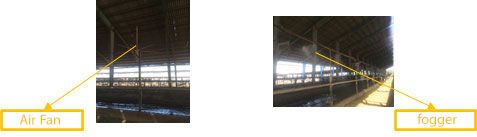

* Use of air fan and spray:
To provide the required humidity and reduce the temperature and relieve heat stress of livestock that
Increases the fertility of the dairy herd during the summer season, air fans and sprayers are installed in the free stall hall.


Livestock making


Features of Free Stall made by Mandegar Sazeh Heev Company
-Use standard hot-dip galvanized pipes with suitable weight
-Use dry bolts
-Bending using a hydraulic system without the slightest shrinkage
-High production speed
-Use of CO2 welding to increase the strength of the free stalls frame
-Ability to change the size in a sliding way to keep livestock with different sizes
-Ability to open all parts as bolts and the ability to move the frame


Livestock making


Livestock feed factory
The feed factory has the following sections:
1- Raw material receiving system
2. Mill system
3. Partitioning and mixing system
4. Pelting system
5. Packaging system
In general, the same method is used in all feed mills and only the final product is somewhat different.



Livestock making


Livestock making

Corn storage silos
Silo is a warehouse for storing food used in human and animal nutrition. Silo in animal husbandry is usually a place where high humidity forage is stored so that it can be used for many years without changing the nutritional value of the forage much.


Livestock making


Zarrin Heev Corn Storage Silos
(Performed by Mandegar Sazeh Heev Company)

The largest silos in Iran at present with a nominal capacity of 70,000 tons are in Zarrin Heev Company. Which is transferred to the ground by wall-to-ground method with value analysis and engineering due to cost reduction and is different from moat method. Drainage from the sides to the middle ramp of the silos is done by septic method and by means of pumping..


Livestock making

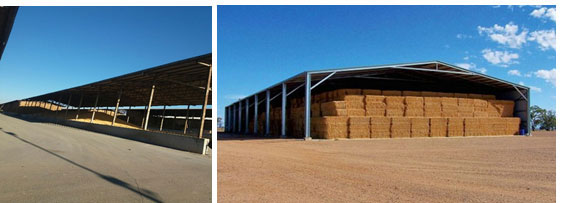

Hay Depot
The hay warehouse building has a drainage system, shorter walls to prevent water from entering and a fire extinguishing system.
